Texas Instruments provides a recommended PCB layout in the THS4042 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The THS4042 can deliver up to 1.5A of output current. To handle this high current, it's recommended to use a PCB with a thick copper layer (at least 2 oz) and to add thermal vias to dissipate heat. Additionally, a heat sink may be required to keep the device within its operating temperature range.
The recommended input capacitance is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating frequency.
To ensure stability, it's recommended to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) between the output and the load to prevent oscillations. Additionally, the THS4042 has a built-in compensation network that can be adjusted using external resistors and capacitors to optimize stability.
The THS4042 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4042IDGNR Overview

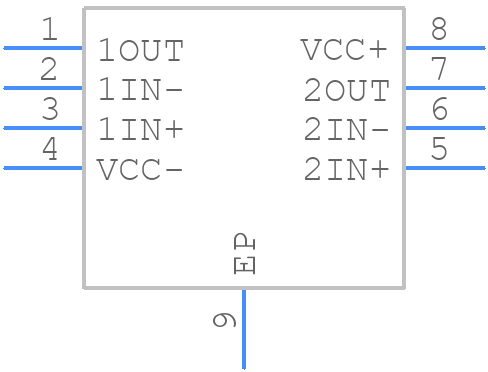

Use the download button to access the THS4042IDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
