SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
240 V/us
Slew Rate-Nom:
240 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
10.5 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
70000
Voltage Gain-Min:
2000
Wideband:
YES
Width:
3 mm
THS4051CDGNR Frequently Asked Questions (FAQs)
A good PCB layout for the THS4051CDGNR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output impedance are matched, and that the device is operated within its recommended operating conditions. It's also recommended to add a small capacitor (e.g. 10nF) between the output and ground to improve stability.
The maximum power dissipation of the THS4051CDGNR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
The THS4051CDGNR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
Common issues with the THS4051CDGNR include oscillations, distortion, and overheating. To troubleshoot, check the PCB layout, component values, and operating conditions. Ensure that the device is operated within its recommended specifications and that the input and output impedance are matched. Use oscilloscopes and other diagnostic tools to identify and isolate the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4051CDGNR Overview

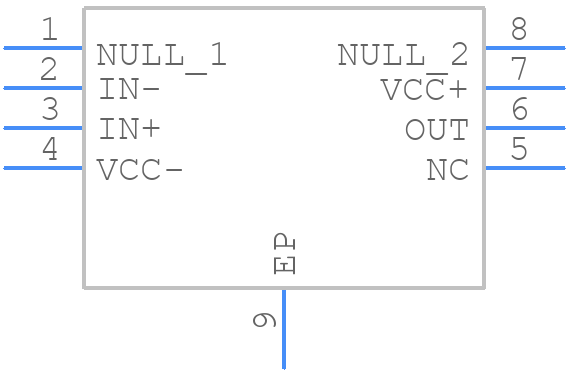

Use the download button to access the THS4051CDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
