THS4052IDR - Texas Instruments

Description: High Speed Operational Amplifiers 70-MHz Low-Cost Volt-Fdback Amp Dual

Download THS4052IDR Model

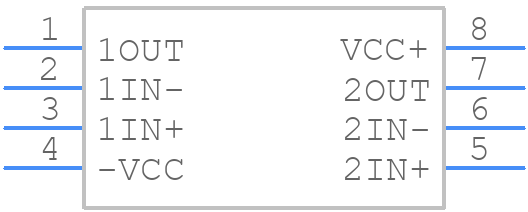

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4052IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
THS4052IDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

THS4052IDR Details

  • Manufacturer Part Number:

    THS4052IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bandwidth (3dB)-Nom:

    70 MHz

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    240 V/us

  • Slew Rate-Nom:

    240 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    10.5 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    70000

  • Voltage Gain-Min:

    2000

  • Wideband:

    YES

  • Width:

    3.9 mm

THS4052IDR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
  • The THS4052IDR has a high current consumption, especially when operating at high frequencies. To handle this, ensure that the power supply can provide the required current, and consider using a low-ESR capacitor to filter the power supply. Additionally, consider using a heat sink to dissipate the heat generated by the device.
  • The THS4052IDR has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • The THS4052IDR requires a specific bias voltage and current to operate optimally. Ensure that the bias voltage is within the recommended range (typically 5V) and that the bias current is limited to the recommended maximum value (typically 10mA).
  • The THS4052IDR requires a proper termination scheme to ensure signal integrity. A 50-ohm termination resistor should be used at the output of the device, and a 100-ohm differential termination resistor should be used at the input of the device.
