Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the signal source and use a common-mode filter to reduce EMI.
The input termination depends on the specific application and signal source. For example, if the signal source has a low impedance, a series resistor may be needed to match the impedance. If the signal source has a high impedance, a parallel resistor and capacitor may be needed to provide a DC path to ground. Texas Instruments provides some general guidelines in the datasheet, but it's recommended to consult with an applications engineer or perform simulations to determine the optimal termination for your specific application.
The THS4121IDGKR is specified to operate from -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance at higher temperatures and to ensure that the device is properly heatsinked to prevent overheating.
The THS4121IDGKR requires a dual supply voltage (VCC and VEE) and a bias voltage (VBIAS) to operate. The bias voltage should be set to the recommended value in the datasheet, and the supply voltages should be decoupled with capacitors to reduce noise. It's also important to ensure that the device is properly biased for the specific application, taking into account factors such as the input signal amplitude and frequency.
The THS4121IDGKR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Additionally, it's recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4121IDGKR Overview

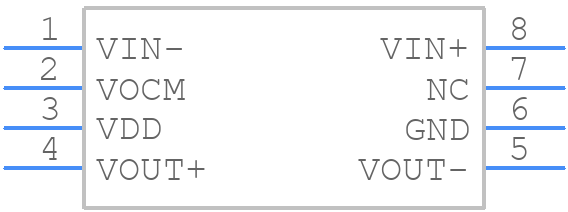

Use the download button to access the THS4121IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
