SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
52 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
15 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
135000
Voltage Gain-Min:
3548
Wideband:
YES
Width:
3 mm
THS4131CDGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4131 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4131 datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4131CDGNR is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
While the THS4131CDGNR is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. TI offers other devices and packages that are specifically designed and qualified for these applications, such as the THS4131QDGKR or THS4131SDGNR. Consult TI's documentation and sales team for more information.
TI provides guidelines for EMC and EMI compliance in the THS4131 datasheet and application notes, including recommendations for PCB layout, shielding, and filtering. Additionally, TI offers EMC and EMI testing and compliance services to help ensure your design meets regulatory requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4131CDGNR Overview

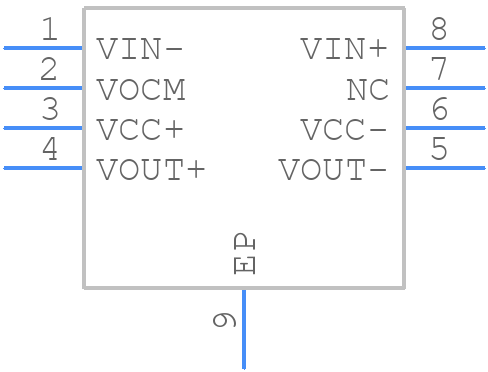

Use the download button to access the THS4131CDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
