A good PCB layout for the THS4140IDGNR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended gain resistor values from the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor tolerance and temperature coefficient when selecting gain resistors.
The maximum power dissipation of the THS4140IDGNR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
To filter out noise and interference, it's recommended to use a low-pass filter or a band-pass filter at the input of the THS4140IDGNR. Additionally, using a shielded enclosure and keeping the circuit away from noise sources can help reduce electromagnetic interference. It's also important to use proper grounding and decoupling techniques to minimize noise coupling.
The recommended input impedance for the THS4140IDGNR is 50 ohms, and the recommended output impedance is also 50 ohms. However, the actual impedance may vary depending on the specific application and the desired frequency response.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4140IDGNR Overview

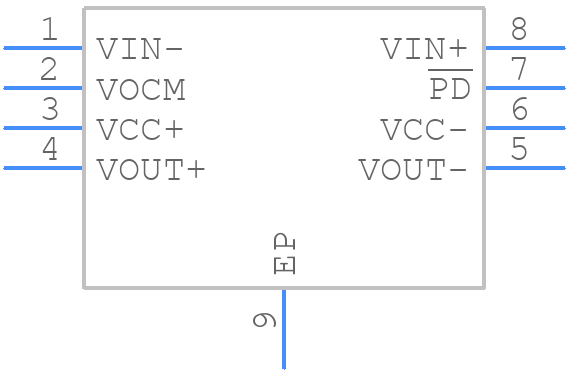

Use the download button to access the THS4140IDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
