Texas Instruments provides a recommended PCB layout in the THS4150IDGN datasheet (Section 10.1) and in the THS4150 Evaluation Module User's Guide (SLAU445). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize signal integrity.
The input termination resistors (RIN) depend on the specific application and signal source impedance. A general guideline is to choose RIN = 50 ohms for a 50-ohm signal source, and RIN = 75 ohms for a 75-ohm signal source. However, it's recommended to consult the THS4150IDGN datasheet (Section 7.3.1) and perform simulations or experiments to determine the optimal RIN value for your specific use case.
The maximum power dissipation for the THS4150IDGN is 1.4 W. However, it's essential to consider the thermal management and heat sinking requirements to ensure the device operates within the recommended temperature range (–40°C to 125°C). Refer to the THS4150IDGN datasheet (Section 6.3) for more information on thermal characteristics.
Yes, the THS4150IDGN can be used for differential-to-single-ended conversion. The device has a fully differential input stage, and the output can be configured as single-ended or differential. However, it's crucial to ensure proper input common-mode voltage and output loading to maintain signal integrity and minimize distortion.
To optimize the THS4150IDGN for low noise performance, follow these guidelines: 1) Use a low-noise power supply, 2) Minimize input capacitance, 3) Use a high-impedance input source, 4) Optimize the input termination resistors, 5) Use a low-noise output load, and 6) Consider using a noise-reducing filter or shielding. Refer to the THS4150IDGN datasheet (Section 7.3.2) for more information on noise performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4150IDGN Overview

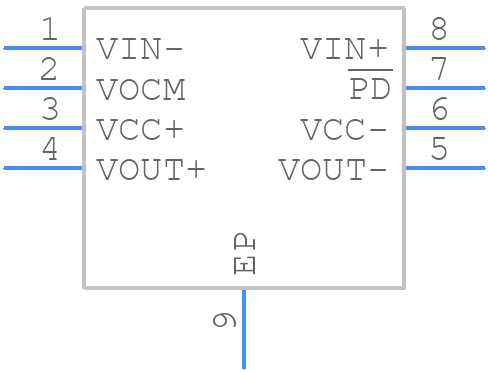

Use the download button to access the THS4150IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
