Texas Instruments provides a recommended PCB layout in the THS4151IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4151IDGN datasheet and application notes, including considerations for impedance matching, signal attenuation, and noise reduction.
The THS4151IDGN is specified to operate from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, including junction temperature and thermal resistance, to ensure reliable operation in your specific application.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering techniques, and consider the device's electromagnetic susceptibility and emissions characteristics, as outlined in the THS4151IDGN datasheet and application notes.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, along with proper PCB layout and routing techniques, to minimize noise and ensure stable operation. Additional filtering techniques, such as ferrite beads and common-mode chokes, may be necessary depending on the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4151IDGN Overview

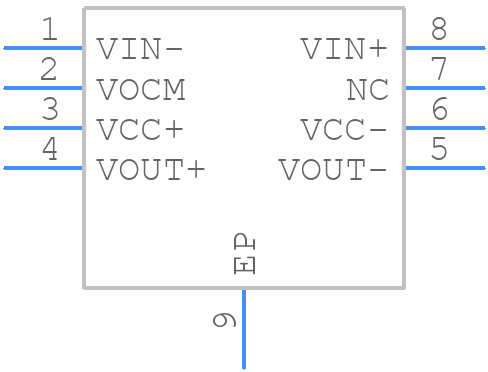

Use the download button to access the THS4151IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
