THS4221DGK - Texas Instruments

Description: Single & Dual(THS4222 ), Low-Distortion High-Speed Rail-to-Rail Output Operational Amplifier

Download THS4221DGK Model

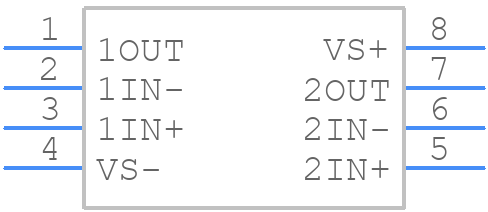

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4221DGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
THS4221DGK - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

THS4221DGK Details

  • Manufacturer Part Number:

    THS4221DGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5 µA

  • Bandwidth (3dB)-Nom:

    12 MHz

  • Bias Current-Max (IIB) @25C:

    3 µA

  • Common-mode Reject Ratio-Min:

    74 dB

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.7 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    975 V/us

  • Slew Rate-Nom:

    990 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    18 mA

  • Supply Voltage Limit-Max:

    8.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    230000

  • Voltage Gain-Min:

    10000

  • Wideband:

    YES

  • Width:

    3 mm
