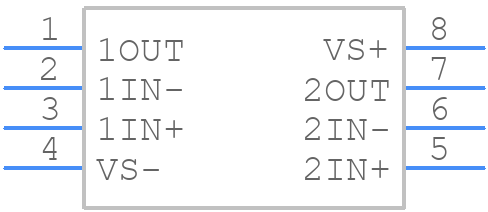

THS4222DGK - Texas Instruments

THS4222DGK Details

• Manufacturer Part Number:

  THS4222DGK

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MSOP

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  5 µA

• Bandwidth (3dB)-Nom:

  12 MHz

• Bias Current-Max (IIB) @25C:

  3 µA

• Common-mode Reject Ratio-Min:

  74 dB

• Common-mode Reject Ratio-Nom:

  94 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.7 µA

• Input Offset Voltage-Max:

  10000 µV

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -8.25 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Slew Rate-Min:

  975 V/us

• Slew Rate-Nom:

  990 V/us

• Subcategory:

  Operational Amplifier

• Supply Current-Max:

  36 mA

• Supply Voltage Limit-Max:

  8.25 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  230000

• Voltage Gain-Min:

  10000

• Wideband:

  YES

• Width:

  3 mm
