SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Min:
975 V/us
Slew Rate-Nom:
990 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
36 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
230000
Voltage Gain-Min:
10000
Wideband:
YES
Width:
3 mm
THS4222DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4222DGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4222DGN datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4222DGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
Yes, the THS4222DGN can be used in a non-inverting configuration by swapping the input pins and adjusting the feedback network accordingly. However, this may affect the device's performance, and it's recommended to consult TI's application notes and simulation tools to ensure optimal results.
TI provides guidelines for EMI and EMC considerations in the THS4222DGN datasheet and application notes, including recommendations for shielding, filtering, and layout techniques to minimize radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4222DGN Overview

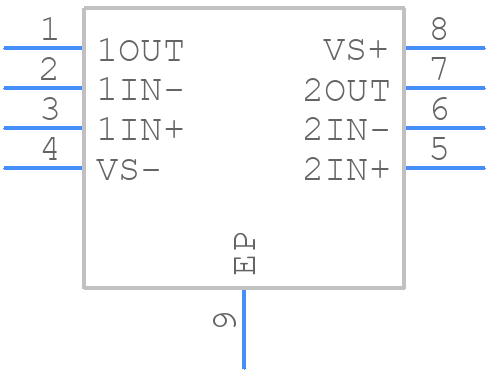

Use the download button to access the THS4222DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS42,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
