SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Min:
975 V/us
Slew Rate-Nom:
990 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
36 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
230000
Voltage Gain-Min:
10000
Wideband:
YES
Width:
3 mm
THS4222DGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4222DGNR evaluation module (EVM) documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4222DGNR datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4222DGNR is specified to operate over a temperature range of -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, such as using shielding, grounding, and filtering techniques. Additionally, consider using TI's recommended EMI filters and follow the guidelines provided in the THS4222DGNR datasheet and application notes.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, along with a pi-filter or LC-filter configuration to reduce noise and ripple. The THS4222DGNR datasheet and application notes provide more detailed guidance on power supply filtering and decoupling techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4222DGNR Overview

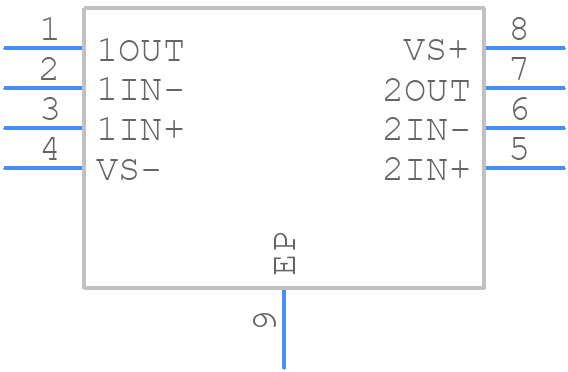

Use the download button to access the THS4222DGNR schematic symbol, PCB footprint, and 3D model.
