SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
1000 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
24 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
400000
Voltage Gain-Min:
1412.5
Wideband:
YES
Width:
3 mm
THS4271DGN Frequently Asked Questions (FAQs)
A good PCB layout for the THS4271DGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the feedback path. Additionally, ensure that the gain and phase margins are sufficient by checking the loop gain and phase plots.
The maximum power dissipation of the THS4271DGN is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
Yes, the THS4271DGN can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance. Additionally, the gain bandwidth product and the slew rate should be considered to ensure that the device can handle the required frequency response.
To protect the THS4271DGN from overvoltage and ESD damage, it's recommended to use voltage clamps, such as TVS diodes, and ESD protection devices, such as ESD diodes or arrays, at the input and output pins. Additionally, ensure that the device is handled and stored in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4271DGN Overview

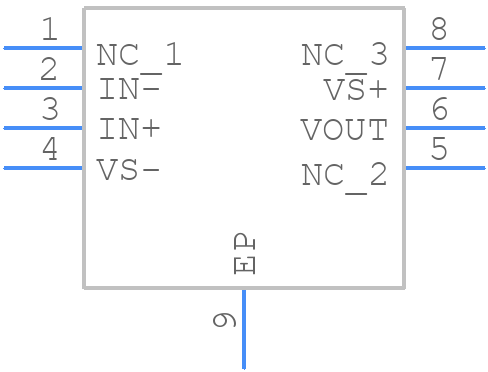

Use the download button to access the THS4271DGN schematic symbol, PCB footprint, and 3D model.
