SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
2800 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
28 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Voltage Gain-Min:
355
Wideband:
YES
Width:
3 mm
THS4502CDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4502CDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines and equations in the datasheet to help calculate the optimal termination resistors. Additionally, the THS4502CDGN evaluation module documentation provides examples of termination resistor values for common applications.
The THS4502CDGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
To ensure EMI compliance, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components as needed. TI also provides EMI-related application notes and guidelines for the THS4502CDGN.
TI recommends using low-ESR, high-frequency decoupling capacitors (e.g., 100nF to 1uF) placed close to the device's power pins to minimize noise and ensure stable operation. The datasheet provides more information on power supply decoupling and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4502CDGN Overview

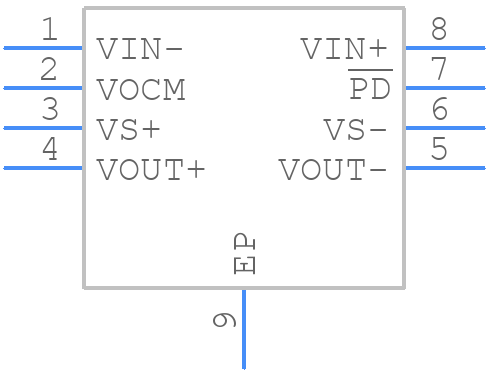

Use the download button to access the THS4502CDGN schematic symbol, PCB footprint, and 3D model.
