A good PCB layout for the THS4524MDBTREP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR capacitor for decoupling, and avoid using long traces or wires for the input and output signals. Additionally, ensure that the device is properly bypassed and that the power supply is clean and well-regulated.
The maximum power dissipation of the THS4524MDBTREP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The THS4524MDBTREP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
To troubleshoot issues with the THS4524MDBTREP, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals for distortion or oscillation. Use an oscilloscope to visualize the signals and identify any anomalies. Also, ensure that the device is properly bypassed and that the PCB layout is correct.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4524MDBTREP Overview

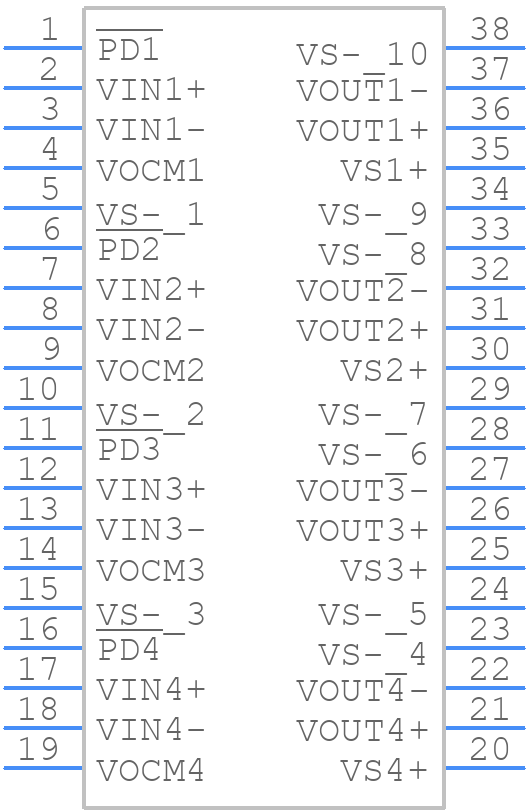

Use the download button to access the THS4524MDBTREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS45,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
