A good PCB layout for the THS4532IPW involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR capacitor for power supply decoupling, and avoid long input and output traces. Additionally, the device should be operated within its recommended operating conditions, and the input and output impedances should be matched to minimize reflections.
The maximum power dissipation of the THS4532IPW is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
The optimal input and output termination resistors for the THS4532IPW depend on the specific application and the impedance of the input and output signals. As a general rule, the input termination resistor should be chosen to match the impedance of the input signal, and the output termination resistor should be chosen to match the impedance of the load.
The recommended input and output signal amplitude for the THS4532IPW is dependent on the specific application and the required signal-to-noise ratio. As a general rule, the input signal amplitude should be between 100 mVpp and 2 Vpp, and the output signal amplitude should be between 100 mVpp and 4 Vpp.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4532IPW Overview

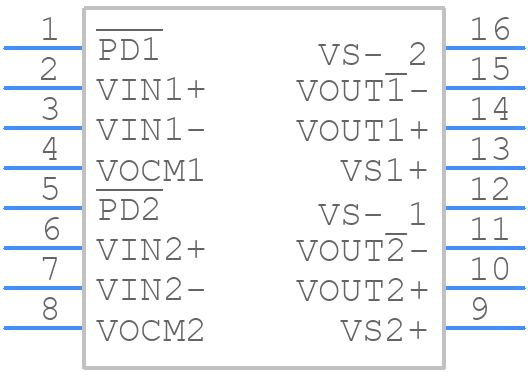

Use the download button to access the THS4532IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS45,
or try a keyword search, such as Operational Amplifiers
