THS4541IRGTR - Texas Instruments

Description: SP Amp DIFF AMP Single R-R O/P ±2.7V/5.4V 16-Pin VQFN EP T/R

Download THS4541IRGTR Model

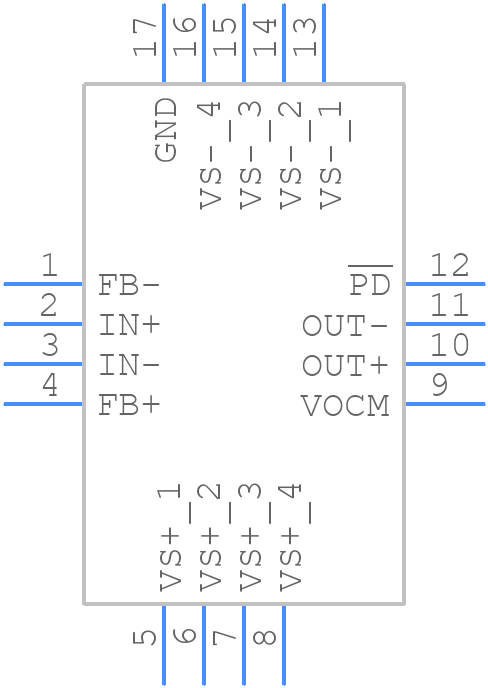

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4541IRGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016A+
click to zoom
3D Models
THS4541IRGTR - Texas Instruments  - 3D model - Quad Flat No-Lead - RGT0016A+
click to zoom

THS4541IRGTR Details

  • Manufacturer Part Number:

    THS4541IRGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    14.5 µA

  • Bandwidth (3dB)-Nom:

    120 MHz

  • Bias Current-Max (IIB) @25C:

    13 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.5 µA

  • Input Offset Voltage-Max:

    450 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1500 V/us

  • Supply Current-Max:

    10.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    850000

  • Voltage Gain-Min:

    100000

  • Wideband:

    YES

  • Width:

    3 mm

THS4541IRGTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4541IRGTR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. Additionally, it is recommended to use a low-ESR capacitor for power supply decoupling.
  • To ensure stability, it is essential to follow the recommended PCB layout guidelines, use a low-ESR capacitor for power supply decoupling, and ensure that the input and output impedance are matched. Additionally, the device should be operated within its recommended operating conditions, and the input signal should be properly terminated.
  • The THS4541IRGTR can handle input signal amplitudes up to 2Vpp differential, but it is recommended to limit the input signal amplitude to 1.5Vpp differential to ensure optimal performance and minimize distortion.
  • While the THS4541IRGTR is designed for differential signaling, it can be used in a single-ended configuration with some limitations. However, this may compromise the device's performance, and it is recommended to use an external balun or transformer to convert the single-ended signal to differential.
  • To optimize the THS4541IRGTR for low power consumption, it is recommended to operate the device at the lowest possible supply voltage, reduce the output load impedance, and minimize the input signal amplitude. Additionally, the device can be powered down when not in use to minimize standby power consumption.
