THS4552IRTWT - Texas Instruments

Description: Dual Channel, Low-Noise, Precision, 150-MHz, Fully Differential Amplifier

Download THS4552IRTWT Model

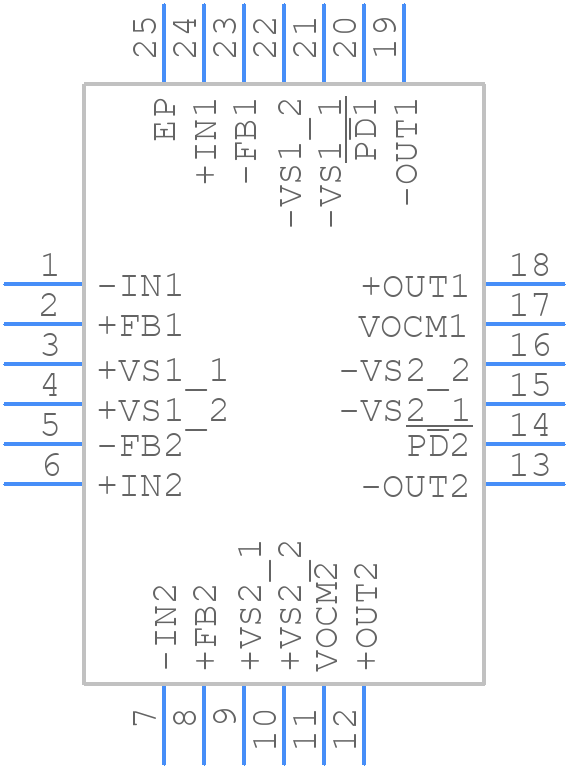

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4552IRTWT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024B
click to zoom
3D Models
THS4552IRTWT - Texas Instruments  - 3D model - Quad Flat No-Lead - RTW0024B
click to zoom

THS4552IRTWT Details

  • Manufacturer Part Number:

    THS4552IRTWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-12-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    2 µA

  • Bandwidth (3dB)-Nom:

    14 MHz

  • Bias Current-Max (IIB) @25C:

    1.5 µA

  • Common-mode Reject Ratio-Min:

    93 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.05 µA

  • Input Offset Voltage-Max:

    265 µV

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    220 V/us

  • Supply Current-Max:

    2.88 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    135000

  • Voltage Gain-Min:

    100000

  • Wideband:

    YES

  • Width:

    4 mm

THS4552IRTWT Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4552 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the THS4552's performance for high-frequency applications, use a low-ESR capacitor (e.g., 100nF) for power supply decoupling, keep the input and output impedance matched, and use a high-frequency-compatible PCB material. Additionally, consider using a shielded enclosure to minimize electromagnetic interference.
  • The maximum power dissipation of the THS4552 is 1.4W. To ensure it doesn't overheat, use a heat sink or a thermally conductive PCB material, and ensure good airflow around the device. Additionally, keep the device's junction temperature below 150°C by monitoring the power consumption and adjusting the operating conditions accordingly.
  • To troubleshoot common issues with the THS4552, start by checking the PCB layout and ensuring that the input and output impedance are matched. Verify that the power supply is clean and stable, and check for any signs of overheating. Use an oscilloscope to visualize the input and output signals, and check for any signs of oscillation or distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the THS4552 can be used in a differential amplifier configuration. To do so, connect the non-inverting input to the positive input signal, and the inverting input to the negative input signal. Use a resistive network to set the gain, and ensure that the input impedance is matched to the source impedance. Consult the datasheet and application notes for specific configuration guidelines.
