THS4631DGNR - Texas Instruments

Description: High Speed Operational Amplifiers High Speed FET-Input Op Amp

Download THS4631DGNR Model

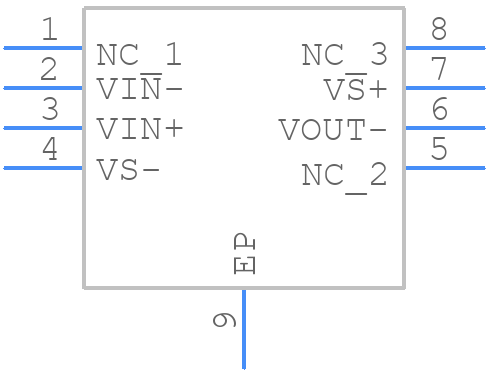

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4631DGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
THS4631DGNR - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D
click to zoom

THS4631DGNR Details

  • Manufacturer Part Number:

    THS4631DGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bandwidth (3dB)-Nom:

    25 MHz

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0001 µA

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1000 V/us

  • Supply Current-Max:

    13 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    210000

  • Voltage Gain-Min:

    1780

  • Wideband:

    YES

  • Width:

    3 mm

THS4631DGNR Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4631DGNR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic or film capacitor with a value between 100nF to 1uF. The capacitor values and types may need to be adjusted based on the specific application and operating frequency.
  • The maximum power dissipation of the THS4631DGNR is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation is typically around 1.4W at 25°C ambient temperature. However, this value can be derated based on the operating temperature and thermal resistance.
  • To ensure stability and prevent oscillations, it is essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the device is properly decoupled. Additionally, the gain and phase margins should be checked to ensure that they meet the stability criteria.
  • The recommended operating voltage range for the THS4631DGNR is between 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
