THS5641AIDW - Texas Instruments

Description: 8-Bit, 100-MSPS Digital-to-Analog Converter (DAC)

Download THS5641AIDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

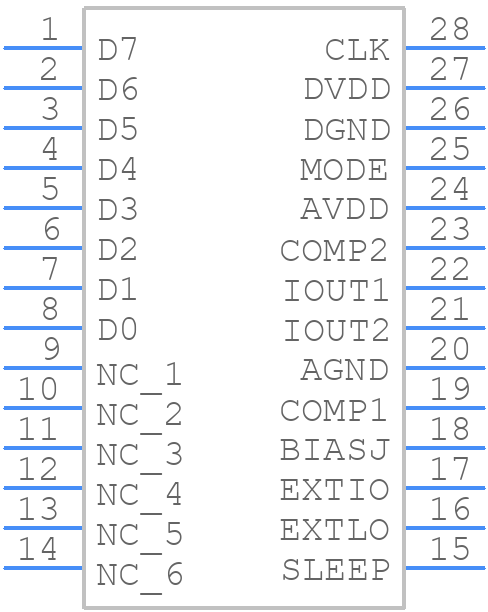

THS5641AIDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS5641AIDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28
click to zoom
3D Models
THS5641AIDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28
click to zoom

THS5641AIDW Details

  • Manufacturer Part Number:

    THS5641AIDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    100 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

THS5641AIDW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS5641AIDW evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The optimal input termination depends on the specific application and signal source. TI recommends using a 50-ohm termination for most applications, but a 75-ohm termination may be required for certain video applications. Consult the THS5641AIDW datasheet and application notes for more information.
  • The THS5641AIDW is specified to operate from -40°C to 85°C, but it can be operated at temperatures up to 105°C with reduced performance and reliability. Consult the datasheet and reliability reports for more information.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly decoupled and bypassed. Consult the THS5641AIDW datasheet and TI's EMC application notes for more information.
  • The recommended power sequencing for THS5641AIDW is to power up the device in the following order: VCC, AVCC, and then DVCC. This ensures that the internal voltage regulators are properly powered up and that the device operates correctly.
