THS5641AIPW - Texas Instruments

Description: 8-Bit, 100-MSPS Digital-to-Analog Converter (DAC)

Download THS5641AIPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

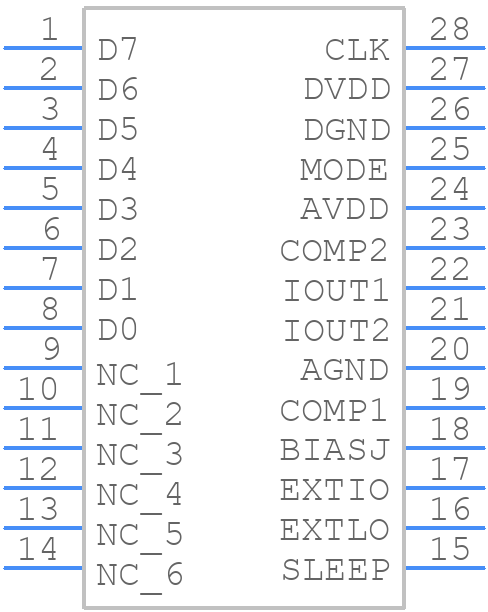

THS5641AIPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS5641AIPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
THS5641AIPW - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

THS5641AIPW Details

  • Manufacturer Part Number:

    THS5641AIPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    100 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS5641AIPW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize crosstalk. Use a common-mode choke or a ferrite bead to filter the power supply.
  • To ensure stability, ensure that the output capacitor is at least 10uF, and the input capacitor is at least 1uF. Also, make sure the feedback resistors are within the recommended range (1kΩ to 10kΩ) and the gain-setting resistors are within the recommended range (1kΩ to 20kΩ).
  • The maximum power dissipation of THS5641AIPW is 1.4W. Make sure to provide adequate heat sinking and thermal management to prevent overheating.
  • Yes, THS5641AIPW is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • Check the PCB layout for any signs of crosstalk or electromagnetic interference (EMI). Verify that the input and output capacitors are within the recommended values. Check the feedback and gain-setting resistors for correct values and tolerances. Use an oscilloscope to observe the output waveform and look for any signs of oscillation or instability.
