THS5641AIPWR - Texas Instruments

Description: Digital to Analog Converters - DAC 8-Bit 100 MSPS CommsDAC

Download THS5641AIPWR Model

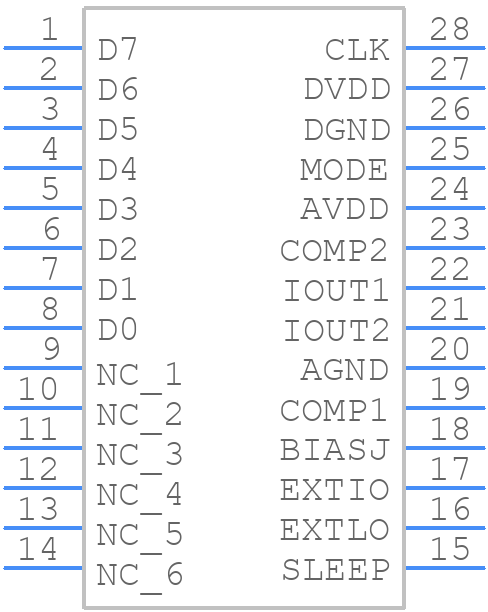

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS5641AIPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
THS5641AIPWR - Texas Instruments  - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

THS5641AIPWR Details

  • Manufacturer Part Number:

    THS5641AIPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    100 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS5641AIPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS5641AIPWR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The input termination depends on the specific application and signal source. The THS5641AIPWR datasheet provides guidelines for selecting the input termination, including the use of a 50-ohm termination for high-frequency signals and a 1-kohm termination for low-frequency signals. Additionally, the application note 'THS5641A Input Termination and Filtering' provides more detailed information on input termination selection.
  • The maximum power dissipation of THS5641AIPWR is 1.4 W. To ensure it is not exceeded, calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. The datasheet provides a power dissipation calculation formula, and the application note 'THS5641A Thermal Management' provides guidelines for thermal management and heat sinking.
  • The THS5641AIPWR datasheet provides guidelines for filtering out noise and aliasing, including the use of external filters and the selection of the optimal filter cutoff frequency. Additionally, the application note 'THS5641A Filtering and Noise Reduction' provides more detailed information on filtering and noise reduction techniques.
  • The recommended clocking scheme for THS5641AIPWR is a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. To minimize clock jitter, use a clock source with a low phase noise and a high-quality clock distribution network. The datasheet provides guidelines for clocking and clock jitter reduction.
