Texas Instruments provides a recommended PCB layout in the THS5651AIDW evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors (RIN) should be chosen based on the source impedance and the desired input impedance. A general guideline is to set RIN to 2x the source impedance. Additionally, the THS5651AIDW datasheet provides a table to help select the optimal RIN value for different source impedances.
The maximum power dissipation of THS5651AIDW is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device within the recommended operating temperature range (-40°C to 125°C).
Yes, THS5651AIDW can be used in a differential input configuration. To do so, connect the positive input to the non-inverting input (VIN+) and the negative input to the inverting input (VIN-). The differential input voltage range is ±2V, and the common-mode input voltage range is -2V to 4V.
THS5651AIDW has a built-in low-pass filter that can be used to filter out high-frequency noise. The filter cutoff frequency can be adjusted by selecting the appropriate values for the RC filter components (Rf and Cf). Additionally, external filtering can be used to further reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS5651AIDW Overview

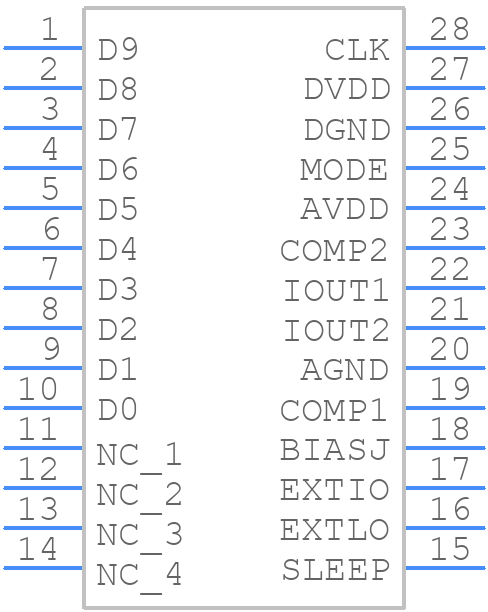

Use the download button to access the THS5651AIDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56,
or try a keyword search, such as Digital to Analog Converters
