Texas Instruments provides a recommended PCB layout in the THS5651AIPWR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output termination resistors depends on the specific application requirements, such as signal amplitude, frequency, and impedance matching. TI provides guidelines for selecting termination resistors in the THS5651AIPWR datasheet and application notes, and also offers online tools and calculators to help with the selection process.
The THS5651AIPWR is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at higher temperatures. TI provides thermal derating charts and guidelines in the datasheet to help designers ensure reliable operation within their specific temperature range.
To ensure EMI compliance, designers should follow proper PCB layout and design practices, such as using shielding, grounding, and filtering techniques. TI provides EMI mitigation guidelines and recommendations in the THS5651AIPWR datasheet and application notes, as well as online resources and tools to help with EMI compliance.
Proper power supply decoupling and filtering are crucial for the THS5651AIPWR's performance and reliability. TI recommends using a combination of ceramic and electrolytic capacitors, as well as ferrite beads or inductors, to filter and decouple the power supply lines. The datasheet and application notes provide guidelines and recommendations for power supply decoupling and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS5651AIPWR Overview

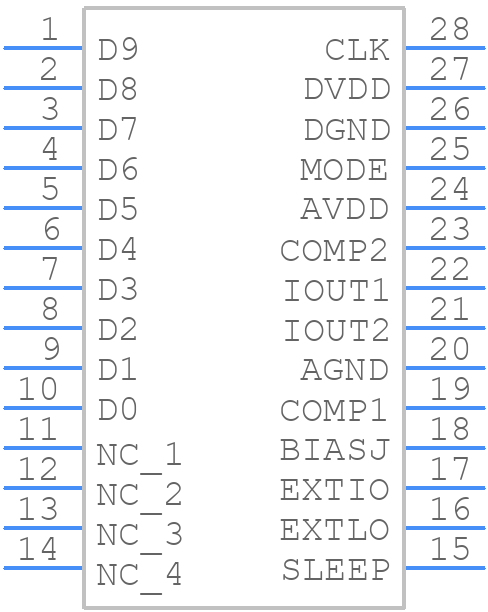

Use the download button to access the THS5651AIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
