Part Image

THS5661AIDW - Texas Instruments

Description: 12-bit 125 MSPS,Comms DAC digital-to-analog converter

Download THS5661AIDW Model

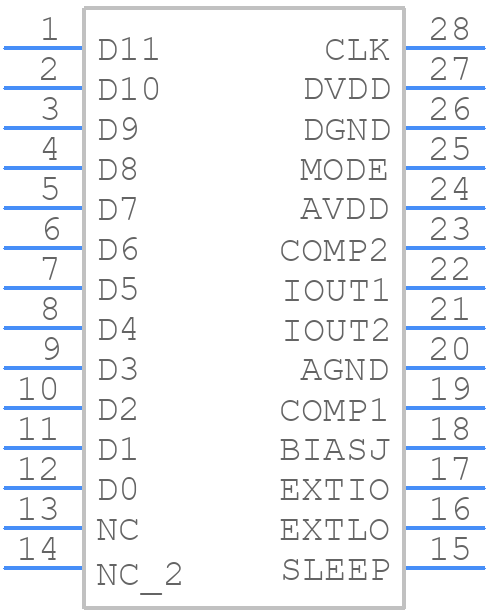

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS5661AIDW - Texas Instruments PCB footprint - Other - Other - SOIC127P1030X265-28N
click to zoom
3D Models
THS5661AIDW - Texas Instruments  - 3D model - Other - SOIC127P1030X265-28N
click to zoom

THS5661AIDW Details

  • Manufacturer Part Number:

    THS5661AIDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-28

  • Pin Count:

    28

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.905 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.49 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

THS5661AIDW Overview

Use the download button to access the THS5661AIDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56, or try a keyword search, such as Digital to Analog Converters

Parts related to THS5661AIDW

Showing 0 results

THS5661AIDW Alternates

Showing results

Image Part Number Model
Part Image AD9762ARZRL Analog Devices Inc

12-Bit, 100 MSPS+ TxDAC® D/A Converter

Part Image AD9762ARRL Analog Devices Inc

12-Bit, 100 MSPS+ TxDAC® D/A Converter
