A good PCB layout for the THS5661AIPW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic or film capacitor with a value between 100nF to 1uF. The capacitor values and types may vary depending on the specific application and frequency of operation.
The maximum power dissipation of the THS5661AIPW is 1.4W. However, the actual power dissipation will depend on the operating conditions, such as the input voltage, output current, and ambient temperature. It's essential to ensure that the device is properly heat-sinked and that the maximum junction temperature (150°C) is not exceeded.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the device is properly decoupled. Additionally, the input and output impedance should be matched to the device's impedance, and the device should be operated within its recommended operating conditions.
The recommended input voltage range for the THS5661AIPW is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS5661AIPW Overview

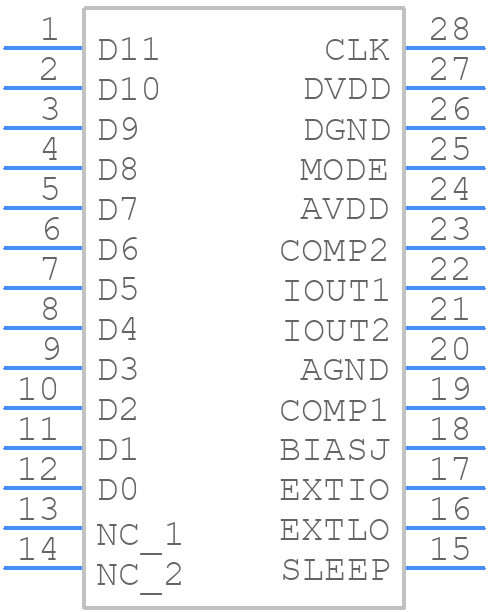

Use the download button to access the THS5661AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56,
or try a keyword search, such as Digital to Analog Converters
