THS5671AIDW - Texas Instruments

Description: Texas Instruments THS5671AIDW, 14 bit Parallel DAC, 125Msps, 28-Pin SOIC

Download THS5671AIDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

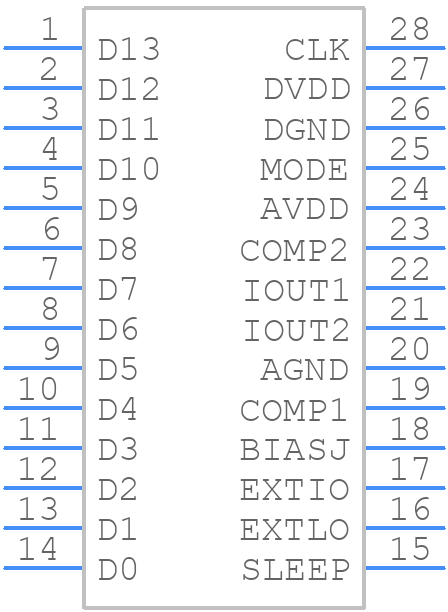

Symbol
THS5671AIDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS5671AIDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G**)
click to zoom
3D Models
THS5671AIDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G**)
click to zoom

THS5671AIDW Details

  • Manufacturer Part Number:

    THS5671AIDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.905 mm

  • Linearity Error-Max (EL):

    0.0427%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.49 mm

THS5671AIDW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
  • The THS5671AIDW requires a dual supply voltage (VCC and VEE) and a bias voltage (VBIAS) to operate. Ensure that the bias voltage is set to the recommended value (typically 1.23V) and that the supply voltages are within the recommended range (typically 3.3V and -3.3V).
  • The maximum input signal amplitude that the THS5671AIDW can handle is typically 2Vpp differential, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • The THS5671AIDW has a built-in low-pass filter, but additional filtering may be necessary depending on the specific application. Consider using external filters, such as RC filters or active filters, to remove unwanted signals and noise.
  • The typical power consumption of the THS5671AIDW is around 130mW, but this can vary depending on the specific operating conditions and application. Consult the datasheet for more information on power consumption and thermal considerations.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

THS5671AIDW Overview

Use the download button to access the THS5671AIDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
