A good PCB layout for THS5671AIPW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
Choose input and output capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitor values should be chosen based on the specific application requirements, but a good starting point is 10uF for the input capacitor and 22uF for the output capacitor.
The maximum power dissipation of THS5671AIPW is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated to 1.25W at 85°C ambient temperature.
To ensure stability, follow the recommended PCB layout guidelines, use the recommended input and output capacitors, and ensure that the input voltage is within the recommended range. Additionally, the device should be operated within the recommended operating conditions, and the output should not be overloaded.
THS5671AIPW is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper thermal management to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS5671AIPW Overview

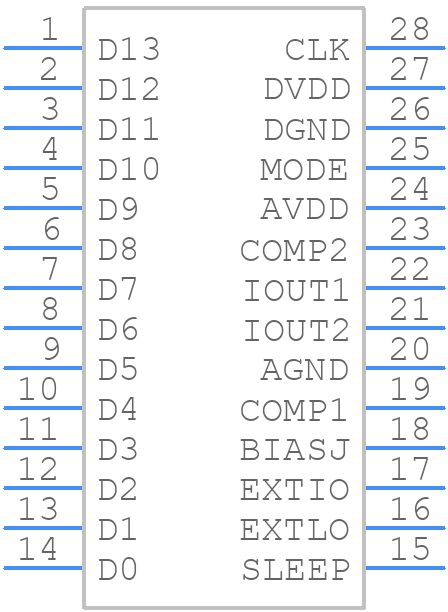

Use the download button to access the THS5671AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
