SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Slew Rate-Nom:
85 V/us
Supply Current-Max:
18 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
100000
Voltage Gain-Max:
10
Voltage Gain-Min:
17782.794
Wideband:
NO
THS7002CPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS7002CPWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
The THS7002CPWP is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures to ensure reliable operation.
Yes, the THS7002CPWP can be used in a non-inverting amplifier configuration, but it's crucial to ensure that the input common-mode voltage is within the specified range to maintain the device's linearity and stability.
To minimize EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and placing bypass capacitors close to the device. Additionally, consider using EMI filters or common-mode chokes to reduce radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7002CPWP Overview

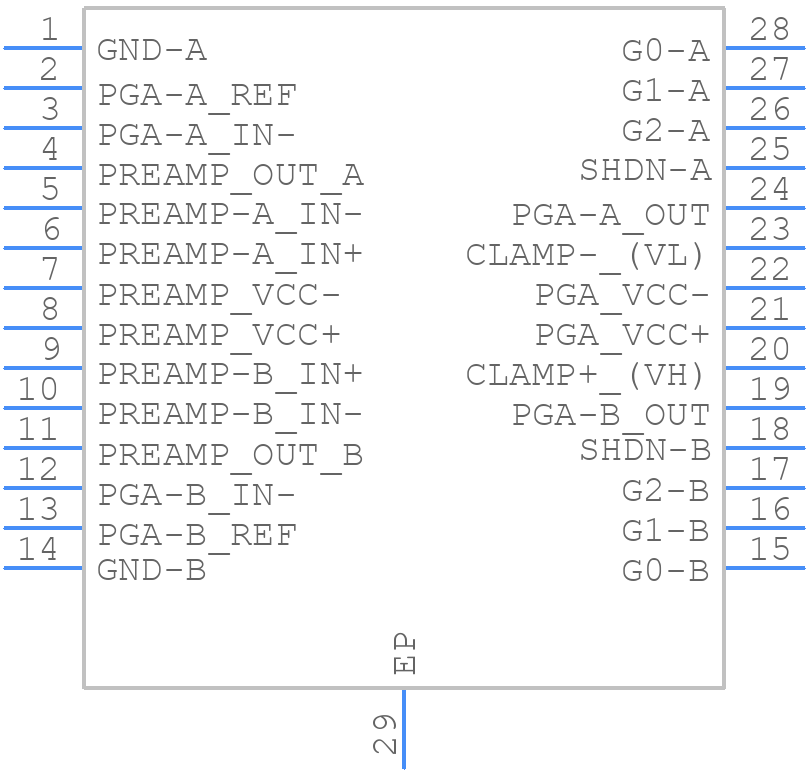

Use the download button to access the THS7002CPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS70,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
