FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Packing Method:
TRAY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1050 V/us
Supply Current-Max:
125 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
THS7327PHP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS7327PHP evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize the THS7327PHP for a specific frequency range, engineers can adjust the gain and bandwidth settings using external resistors and capacitors, as described in the datasheet. Additionally, Texas Instruments provides a filter design tool to help optimize the device for specific frequency ranges.
The maximum power dissipation of the THS7327PHP is dependent on the operating conditions, including supply voltage, temperature, and output load. Engineers should consult the datasheet and thermal design guidelines to ensure the device operates within safe operating conditions.
To ensure EMC with the THS7327PHP, engineers should follow proper PCB design and layout practices, including using shielding, grounding, and filtering techniques to minimize electromagnetic interference (EMI). Additionally, Texas Instruments provides EMC guidelines and recommendations in the datasheet and application notes.
The recommended operating temperature range for the THS7327PHP is -40°C to 85°C. However, engineers should consult the datasheet and reliability data to ensure the device operates within safe operating conditions and meets the required reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7327PHP Overview

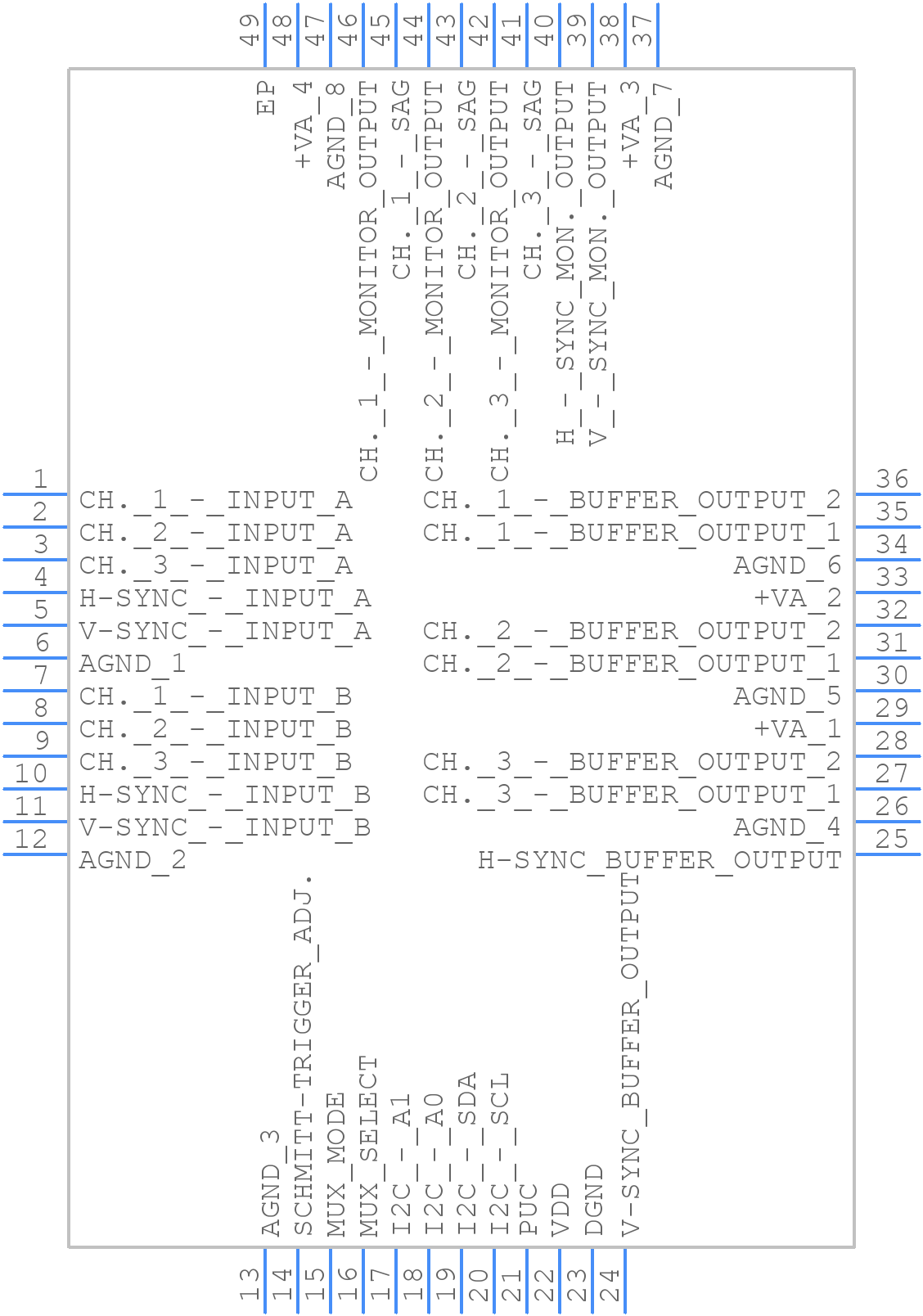

Use the download button to access the THS7327PHP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
