Part Image

THS7353PW - Texas Instruments

Description: 3-Channel Low Power Video Amp w/I2C Control, Selectable Filters, 0dB Gain, 2:1 MUX

Download THS7353PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

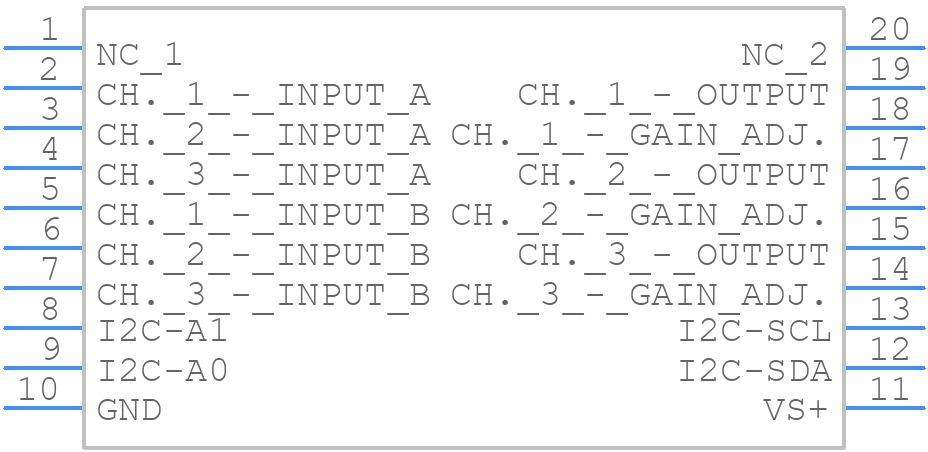

THS7353PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS7353PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
THS7353PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

THS7353PW Details

  • Manufacturer Part Number:

    THS7353PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    BUFFER

  • Average Bias Current-Max (IIB):

    5 µA

  • Bandwidth (3dB)-Nom:

    150 MHz

  • Bias Current-Max (IIB) @25C:

    -4 µA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Min:

    0.04 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    300 V/us

  • Supply Current-Max:

    7.4 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS7353PW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS7353PW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The THS7353PW has a flexible input impedance configuration. To optimize for a specific input impedance, adjust the values of the input resistors (RIN1 and RIN2) and capacitors (CIN1 and CIN2) according to the datasheet's input impedance calculation formula and the desired input impedance value.
  • The THS7353PW can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause instability or oscillations. If a larger capacitive load is required, consider adding a buffer stage or using a different amplifier.
  • To reduce power consumption, consider reducing the supply voltage (VCC) to the minimum recommended value, using a lower power mode (e.g., shutdown mode), or implementing a power-saving scheme such as dynamic voltage scaling or clock gating.
  • The THS7353PW is a high-power amplifier and requires proper thermal management to prevent overheating. Use a heat sink, ensure good airflow, and follow the recommended thermal pad layout and thermal interface material guidelines to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS7353PW Overview

Use the download button to access the THS7353PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73, or try a keyword search, such as Buffer Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
