SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
YES
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1250 V/us
Supply Current-Max:
49 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Voltage Gain-Max:
211.348904
Voltage Gain-Min:
3.802
Wideband:
YES
Width:
4.4 mm
THS7530QPWPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the analog-to-digital converter (ADC) and use a common mode choke to filter out noise.
To optimize the THS7530QPWPRQ1 for a specific input frequency range, you can adjust the gain and bandwidth of the device by selecting the appropriate values for the external resistors and capacitors. Additionally, you can use the device's built-in filters to reject out-of-band noise and improve signal-to-noise ratio (SNR). It's also important to consider the input impedance and output impedance of the device when designing the surrounding circuitry.
The maximum input signal amplitude that the THS7530QPWPRQ1 can handle is dependent on the supply voltage and the gain setting. According to the datasheet, the maximum input signal amplitude is typically around 2.5Vpp differential, but this can be increased to 4Vpp differential with a reduced gain setting. It's important to ensure that the input signal amplitude does not exceed the maximum rating to avoid device damage or degradation.
To ensure that the THS7530QPWPRQ1 is properly biased and powered, it's important to follow the recommended power supply and biasing scheme outlined in the datasheet. This typically involves using a low-noise power supply, such as a linear regulator, and ensuring that the device is properly decoupled from the power supply using capacitors and resistors. Additionally, it's important to ensure that the device is operated within its recommended operating temperature range.
The THS7530QPWPRQ1 is a high-power device that can generate significant heat, so thermal management is critical to ensure reliable operation. Key considerations include using a heat sink or thermal pad to dissipate heat, ensuring good airflow around the device, and avoiding thermal gradients on the PCB. It's also important to follow the recommended thermal design guidelines outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7530QPWPRQ1 Overview

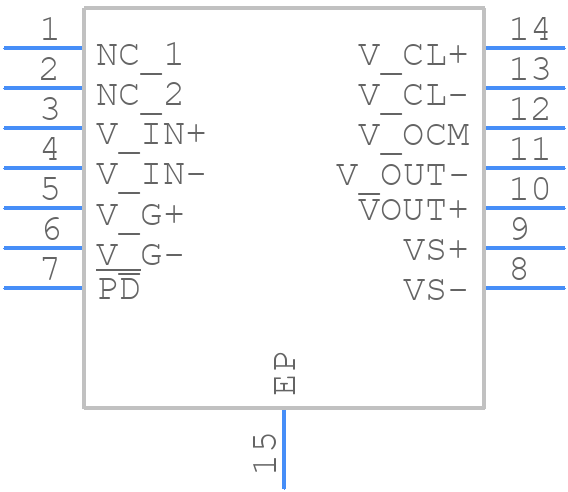

Use the download button to access the THS7530QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
