FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
220
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Settling Time-Max:
0.009 µs
Settling Time-Nom (tstl):
0.005 µs
Supply Current-Max:
167 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
20
Width:
7 mm
THS8134BCPHP Frequently Asked Questions (FAQs)
A good PCB layout for the THS8134BCPHP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the output stage. Also, ensure that the input and output impedance are matched, and the device is operated within its recommended operating conditions.
The maximum power dissipation of the THS8134BCPHP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated based on the actual operating conditions.
Yes, the THS8134BCPHP can be used as a line driver for a long cable. However, it's essential to consider the cable's capacitance and inductance, as well as the device's output impedance, to ensure signal integrity and minimize reflections. Additionally, consider using a cable with a characteristic impedance of 75 ohms to match the device's output impedance.
To protect the THS8134BCPHP from ESD and overvoltage, use ESD protection diodes, such as the TI's TPD1E05U06, and consider adding overvoltage protection circuits, such as a voltage clamp or a crowbar circuit. Additionally, follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS8134BCPHP Overview

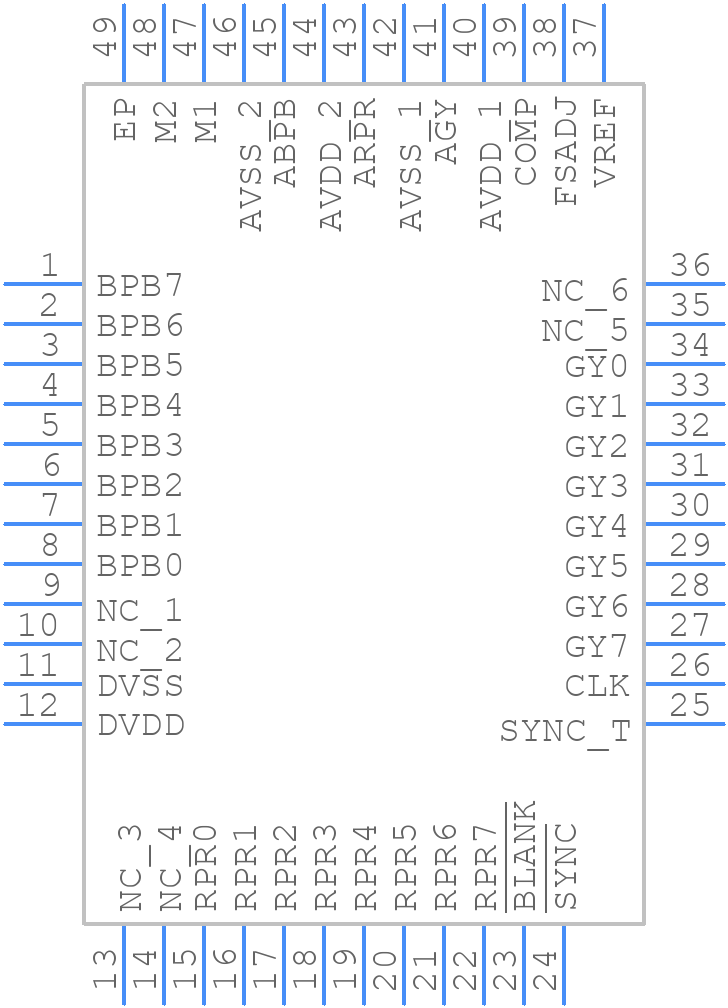

Use the download button to access the THS8134BCPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS81,
or try a keyword search, such as Digital to Analog Converters
