TIM3.5-1212 footprint, schematic symbol and 3D model by Traco Power

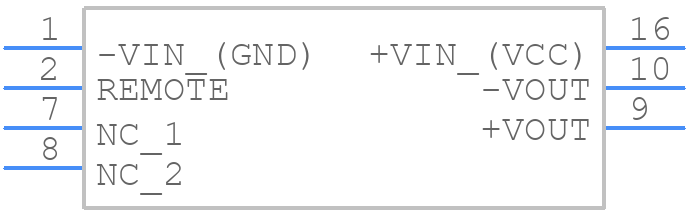

Symbol

click to zoom

PCB Footprints

TIM3.5-1212 - Traco Power PCB footprint - Other - Other - TIM3.5-1212-1

click to zoom

3D Models

TIM3.5-1212 - Traco Power - 3D model - Other - TIM3.5-1212-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TIM3.5-1212
Part Number TIM3.5-1212
Manufacturer Traco Power
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - TIM3.5-1212-1
Released Date Jan 24, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TIM3.5-1212 Details

Manufacturer Part Number:
TIM3.5-1212
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-16/7
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Date Of Intro:
2018-02-07
Manufacturer:
Traco Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
82%
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDMA-P7
Length:
24.3 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
90 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.292 A
Output Voltage-Max:
12.12 V
Output Voltage-Min:
11.88 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Total Power Output-Max:
3.5 W
Trim/Adjustable Output:
NO
Width:
14.4 mm

TIM3.5-1212 Frequently Asked Questions (FAQs)

Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended.
Yes, the TIM3.5-1212 is designed to withstand high vibrations. However, it's recommended to follow the manufacturer's guidelines for mounting and screw torque to ensure reliable operation.
To ensure reliability in high-temperature environments, it's essential to follow the derating curves provided in the datasheet. Additionally, ensure good airflow, and consider using a heat sink or thermal interface material to reduce the junction temperature.
Traco Power recommends using a low-ESR ceramic or film capacitor with a value of 10-22 μF, depending on the input voltage and ripple requirements.
Yes, it's possible to parallel multiple TIM3.5-1212 modules to increase the output current. However, it's essential to follow Traco Power's guidelines for paralleling and to ensure that the modules are identical and from the same production batch.
