TIOL1113DMWT - Texas Instruments

Description: IO-Link device transceiver with integrated surge protection and 3.3-V LDO output

Download TIOL1113DMWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

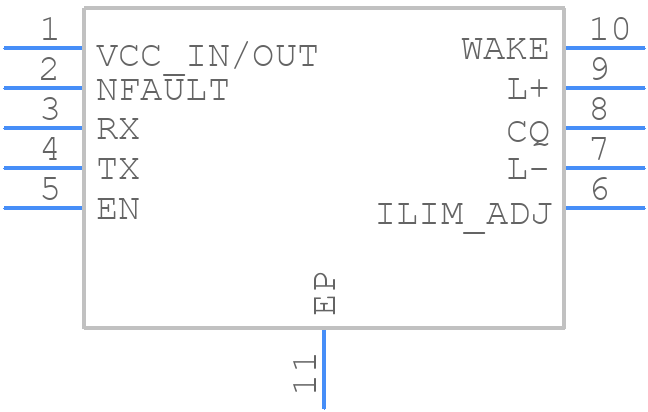

TIOL1113DMWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOL1113DMWT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMW0010A_
click to zoom
3D Models
TIOL1113DMWT - Texas Instruments - 3D model - Small Outline No-lead - DMW0010A_
click to zoom

TIOL1113DMWT Details

  • Manufacturer Part Number:

    TIOL1113DMWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    LDO output range(V) : 3.3

  • Interface IC Type:

    IO-LINK TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOL1113DMWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a thermal pad or thermal interface material to improve heat dissipation. Ensure good airflow and avoid blocking airflow around the device. Follow the recommended thermal design guidelines.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use EMI filters or chokes on the input and output lines. Follow good PCB layout practices and use a common-mode choke if necessary.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits as needed.
  • The quiescent current is typically around 1.5mA. Consider this when calculating your system's overall power consumption and design your power management accordingly.
