Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing electromagnetic interference (EMI).
To ensure reliable operation over the full temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
The TIOL1115DMWT has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
The recommended input capacitance value is 10nF to 100nF, depending on the specific application and noise requirements. A larger input capacitance can help filter out high-frequency noise, but may also increase the startup time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TIOL1115DMWT Overview

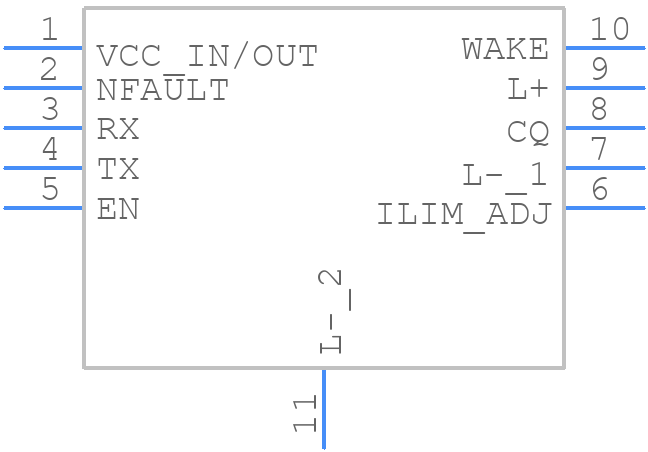

Use the download button to access the TIOL1115DMWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOL1,
or try a keyword search, such as Other Interface ICs
