TIOS1013DMWR - Texas Instruments

Description: Digital sensor output driver with integrated surge protection and 3.3-V LDO output

Download TIOS1013DMWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

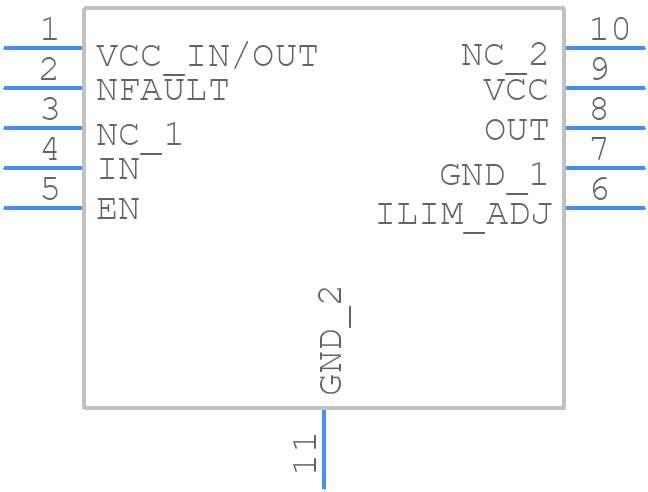

TIOS1013DMWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOS1013DMWR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMW0010A
click to zoom
3D Models
TIOS1013DMWR - Texas Instruments - 3D model - Small Outline No-lead - DMW0010A
click to zoom

TIOS1013DMWR Details

  • Manufacturer Part Number:

    TIOS1013DMWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOS1013DMWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between AVCC and AGND.
  • Use a thermocouple or a thermistor with a high accuracy rating. Ensure good thermal contact between the sensor and the device. Use a low-pass filter to remove noise and average multiple readings to improve accuracy.
  • The maximum cable length for the I2C interface is approximately 3 meters (10 feet) due to the capacitive loading of the bus. Use a repeater or a buffer if longer cable lengths are required.
  • Use an external power-on reset circuit or a supervisor IC to ensure a clean power-up sequence. The device's internal POR and BOR circuits can be used, but may not be sufficient for all applications.
  • The recommended clock frequency is 32.768 kHz, but the device can operate up to 1 MHz. A higher clock frequency may be used, but it may affect power consumption and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIOS1013DMWR Overview

Use the download button to access the TIOS1013DMWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOS1, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
