TIOS101DMWR - Texas Instruments

Description: Digital Sensor Output Drivers With Integrated Surge Protection

Download TIOS101DMWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

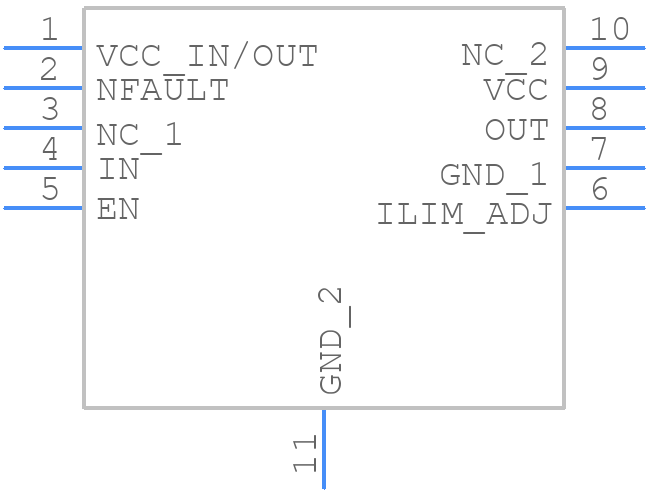

Symbol
TIOS101DMWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIOS101DMWR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - TIOS101DMWR
click to zoom
3D Models
TIOS101DMWR - Texas Instruments - 3D model - Small Outline No-lead - TIOS101DMWR
click to zoom

TIOS101DMWR Details

  • Manufacturer Part Number:

    TIOS101DMWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TIOS101DMWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a ferrite bead or a 10-ohm resistor in series with the VDD pin to reduce noise.
  • Use a thermocouple or a thermistor with a high accuracy rating. Ensure good thermal contact between the sensor and the device. Use a low-pass filter to remove noise and average multiple readings to improve accuracy.
  • The maximum cable length for the DMWR interface is 10 meters (33 feet). However, it's recommended to keep the cable length as short as possible to minimize signal degradation and noise.
  • Use an external reset circuit or a supervisory IC to ensure a clean power-on reset. For brown-out detection, use a voltage detector or a supervisory IC with a built-in BOR function.
  • The recommended clock frequency for the TIOS101DMWR is 32.768 kHz. This frequency provides optimal performance and power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIOS101DMWR Overview

Use the download button to access the TIOS101DMWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIOS1, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
