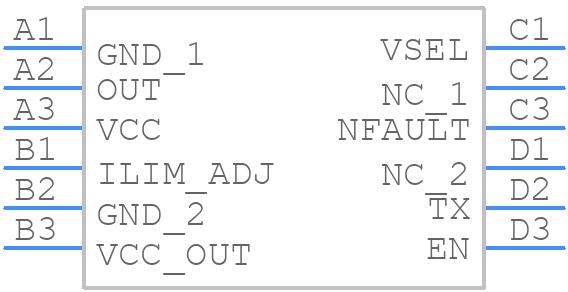

TIOS1023LYAHR - Texas Instruments

TIOS1023LYAHR Details

• Manufacturer Part Number:

  TIOS1023LYAHR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DSBGA-12

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Built-in Protections:

  REVERSE POLARITY; SURGE PROTECTION

• Driver Number of Bits:

  1

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-XBGA-B12

• JESD-609 Code:

  e1

• Length:

  2.45 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  0.35 A

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA12,3X4,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.4 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  7 V

• Supply Voltage-Nom:

  24 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  1.2 µs

• Turn-on Time:

  1.2 µs

• Width:

  1.7 mm
