TIR1000IPSR footprint, schematic symbol and 3D model by Texas Instruments

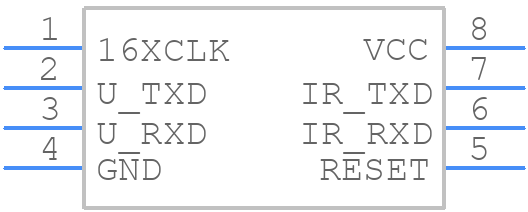

Symbol

click to zoom

PCB Footprints

TIR1000IPSR - Texas Instruments PCB footprint - Other - Other - SOIC127P780X200-8N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TIR1000IPSR
Part Number TIR1000IPSR
Manufacturer Texas Instruments
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P780X200-8N
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

TIR1000IPSR Details

Manufacturer Part Number:
TIR1000IPSR
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Pin Count:
8
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Additional Feature:
CAN ALSO OPERATE AT 5V SUPPLY
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
6.2 mm
Moisture Sensitivity Level:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2 mm
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
5.3 mm
uPs/uCs/Peripheral ICs Type:
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

TIR1000IPSR Frequently Asked Questions (FAQs)

Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TIR1000IPSR can be configured for different modulation frequencies by adjusting the values of the external resistors RMOD and RREF. The application note SLUA623 provides a detailed explanation of the calculation and selection of these resistors for different modulation frequencies.
The TIR1000IPSR is rated for operation in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required for high-temperature applications.
The TIR1000IPSR is not hermetically sealed and may be susceptible to moisture ingress. Texas Instruments recommends using the device in a humidity-controlled environment, and taking precautions such as conformal coating or potting to protect the device from moisture in high-humidity applications.
Texas Instruments provides a troubleshooting guide in the application note SLUA623, which includes a step-by-step procedure for identifying and resolving common issues with the TIR1000IPSR, such as faulty operation, incorrect output, or thermal shutdown.
