TIR1000IPWR - Texas Instruments

Description: Standalone IrDA Encoder & Decoder

Download TIR1000IPWR Model

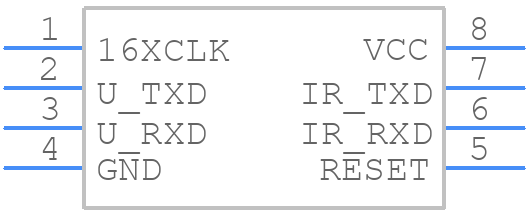

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TIR1000IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
TIR1000IPWR - Texas Instruments  - 3D model - Small Outline Packages - PW0008A
click to zoom

TIR1000IPWR Details

  • Manufacturer Part Number:

    TIR1000IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN ALSO OPERATE AT 5V SUPPLY

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

TIR1000IPWR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TIR1000IPWR is -40°C to 125°C.
  • Refer to the TIR1000IPWR datasheet and application notes for configuration guidelines. Additionally, consult with Texas Instruments' support resources and online forums for specific application guidance.
  • Follow the recommended PCB layout and thermal management guidelines outlined in the TIR1000IPWR datasheet and application notes. Ensure proper heat sinking, thermal vias, and PCB trace routing to minimize thermal resistance and ensure reliable operation.
  • Yes, the TIR1000IPWR is designed for high-reliability and safety-critical applications. However, ensure you follow Texas Instruments' guidelines for reliability and safety, and consult with their support resources for specific application guidance.
  • Consult the TIR1000IPWR datasheet, application notes, and troubleshooting guides. Use Texas Instruments' online resources, such as the E2E forum, and contact their support team for assistance with troubleshooting and debugging.
