TIR1000PSR - Texas Instruments

Description: Texas Instruments TIR1000PSR, Line Transceiver, 2.7 → 5.5 V, 8-Pin SOIC

Download TIR1000PSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

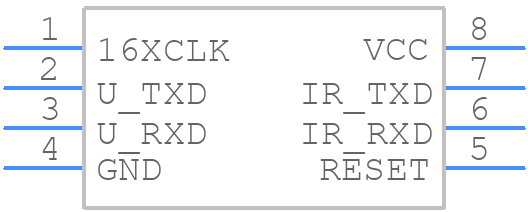

TIR1000PSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TIR1000PSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PS (R-PDSO-G8)
click to zoom
3D Models
TIR1000PSR - Texas Instruments - 3D model - Small Outline Packages - PS (R-PDSO-G8)
click to zoom

TIR1000PSR Details

  • Manufacturer Part Number:

    TIR1000PSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAN ALSO OPERATE AT 5V SUPPLY

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

TIR1000PSR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TIR1000PSR is -40°C to 125°C.
  • To ensure proper biasing, connect the VCC pin to a 5V power supply, and the GND pin to a solid ground. Additionally, decouple the power supply with a 0.1uF capacitor to reduce noise.
  • To minimize EMI, use a 4-layer PCB with a solid ground plane, and keep the TIR1000PSR away from high-frequency signals. Use a shielded enclosure and ensure good grounding to reduce radiation.
  • To troubleshoot issues, check the power supply voltage, ensure proper grounding, and verify the input signals are within the recommended range. Use an oscilloscope to monitor the output signals and check for noise or distortion.
  • Yes, the TIR1000PSR is designed for high-reliability applications and meets the requirements for safety-critical systems. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TIR1000PSR Overview

Use the download button to access the TIR1000PSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TIR10, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
