- Part Number TJA1020T
- Manufacturer NXP
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
- Released Date Jun 20, 2025
- Last Modified Date Jun 20, 2025 3:59 AM UTC
- Pinout / Pin List Click Here (Member Only)
TJA1020T Details
-
Manufacturer Part Number:
TJA1020T
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3.90 MM, PLASTIC, MS-012, SO-8
-
Pin Count:
8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
TJA1020T Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11529, which includes guidelines for component placement, routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
-
The TJA1020T can be configured for different CAN bus topologies using external resistors and capacitors. NXP provides a topology calculator tool to help designers determine the required component values for their specific application.
-
The maximum cable length supported by the TJA1020T depends on the specific application and the characteristics of the CAN bus. In general, the TJA1020T can support cable lengths up to 1 km, but NXP recommends consulting the application note AN11529 for more detailed guidance.
-
The TJA1020T has built-in fault detection and error handling mechanisms, including bus fault detection, error counters, and interrupt generation. The device can also be configured to operate in a fault-tolerant mode to ensure continued operation in the event of a bus fault.
-
The TJA1020T is designed to be compatible with other CAN transceiver devices that conform to the ISO 11898-2 standard. However, NXP recommends verifying compatibility with specific devices and applications to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
TJA1020T Overview

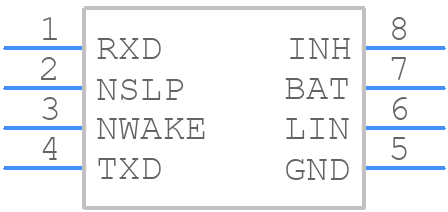

Use the download button to access the TJA1020T schematic symbol, PCB footprint, and 3D model.
