TJA1021BT/0Z - NXP

Description: LIN Transceivers LIN 2.1/SAE J2602/ISO17987 transceiver

Download TJA1021BT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

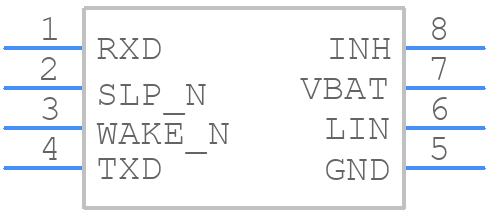

Symbol
TJA1021BT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1021BT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TJA1021BT/0Z
click to zoom
3D Models
TJA1021BT/0Z - NXP - 3D model - Small Outline Packages - TJA1021BT/0Z
click to zoom

TJA1021BT/0Z Details

  • Manufacturer Part Number:

    TJA1021BT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1021BT/0Z Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the TJA1021BT/0Z is dependent on the specific application and the characteristics of the cable. However, as a general guideline, NXP recommends a maximum cable length of 40 meters for a 500 kbps data rate and 20 meters for a 1 Mbps data rate.
  • To ensure EMC with the TJA1021BT/0Z, follow proper PCB layout and design guidelines, use a common-mode choke or ferrite bead on the CAN bus lines, and ensure that the device is properly shielded and grounded. Additionally, NXP provides an application note (AN11588) that provides detailed EMC design guidelines for the TJA1021BT/0Z.
  • The recommended termination scheme for the TJA1021BT/0Z is a 120 ohm resistor at each end of the CAN bus, with a common-mode termination of 2 x 47 ohm resistors to VCC and GND. This termination scheme helps to reduce reflections and ensure reliable data transmission.
  • The TJA1021BT/0Z has built-in error detection and fault handling mechanisms, including bit error detection, bit stuffing error detection, and bus fault detection. The device also provides a fault pin that can be used to signal a fault condition to the microcontroller. The microcontroller can then take appropriate action to recover from the fault.
  • The operating temperature range of the TJA1021BT/0Z is -40°C to 125°C, making it suitable for use in a wide range of automotive and industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TJA1021BT/0Z Overview

Use the download button to access the TJA1021BT/0Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TJA10, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
