TJA1027T/20/1J - NXP

Description: NXP - TJA1027T/20/1J - LIN TRANSCEIVER, AEC-Q100, SOIC-8

Download TJA1027T/20/1J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

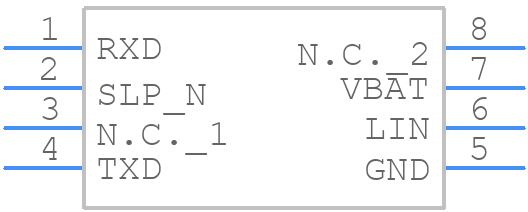

TJA1027T/20/1J - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1027T/20/1J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
click to zoom
3D Models
TJA1027T/20/1J - NXP - 3D model - Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for TJA1027T/20/1J
  • Part Number TJA1027T/20/1J
  • Manufacturer NXP
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - SO8: plastic small outline package; 8 leads; body width 3.9 mm
  • Released Date Jul 15, 2017
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

TJA1027T/20/1J Details

  • Manufacturer Part Number:

    TJA1027T/20/1J

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, GREEN, PLASTIC, MS-012, SOT96-1, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1027T/20/1J Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TJA1027T/20/1J is -40°C to 125°C.
  • To ensure EMC, follow proper PCB design guidelines, use a common-mode choke, and add shielding to the device. Additionally, ensure that the device is properly grounded and decoupled.
  • Follow the recommended layout and routing guidelines in the datasheet, keeping in mind to minimize signal traces, use a solid ground plane, and avoid crossing signal lines.
  • Use a logic analyzer or oscilloscope to monitor the device's signals, check for proper power supply and grounding, and verify that the device is properly configured and initialized.
  • Yes, the TJA1027T/20/1J is designed for use in safety-critical applications, such as automotive systems. However, ensure that you follow all relevant safety standards and guidelines.
