3 X 3 MM, 0.85 MM HEIGHT, GREEN, PLASTIC, SOT782-1, MO-229, HVSON-8
Pin Count:
8
Manufacturer Package Code:
SOT782-1
Country Of Origin:
Mainland China, Thailand
HTS Code:
8542.39.00.01
Factory Lead Time:
10 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
7.13
Data Rate:
20 Mbps
JESD-30 Code:
S-PDSO-G8
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Number of Transceivers:
1
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Supply Current-Max:
4 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Telecom IC Type:
LIN TRANSCEIVER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TJA1029TK,118 Frequently Asked Questions (FAQs)
A good PCB layout for the TJA1029TK,118 involves keeping the transmitter and receiver lines as short as possible, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a common mode filter and to keep the CANH and CANL lines as close together as possible.
To ensure EMC with the TJA1029TK,118, it's essential to follow proper PCB design and layout guidelines, use shielding, and implement filtering and shielding on the CAN bus lines. Additionally, ensure that the device is properly grounded and that the system is designed to meet the relevant EMC standards.
The TJA1029TK,118 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pads on the package. It's also essential to follow proper PCB design guidelines to minimize thermal resistance.
To troubleshoot issues with the TJA1029TK,118, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the CAN bus termination and the signal integrity. Use an oscilloscope to check the signal waveforms and ensure that the device is properly configured. If issues persist, consult the NXP Semiconductors support resources or contact their technical support team.
When using the TJA1029TK,118 in a redundant CAN bus system, ensure that the devices are properly synchronized, and the system is designed to handle the increased bus load. Implement a proper redundancy scheme, such as a dual-CAN architecture, and ensure that the system can handle the failure of one bus. Consult the NXP Semiconductors application notes and technical documentation for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TJA1029TK,118 Overview

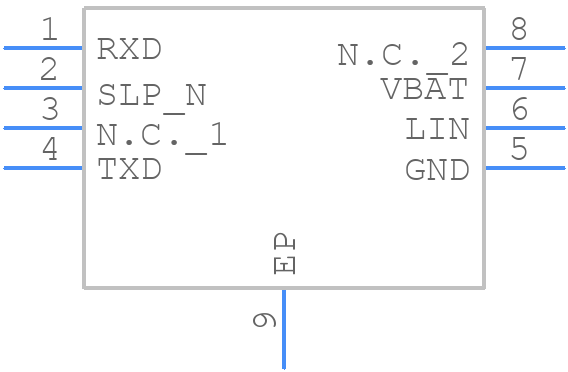

Use the download button to access the TJA1029TK,118 schematic symbol, PCB footprint, and 3D model.
