TJA1042CT/0Z - NXP

Description: CAN Interface IC High-Speed CAN Transceiver with Standby Mode , 4.5 ~ 5.5V ,-40°C ~ 150°C ,120 mV

Download TJA1042CT/0Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

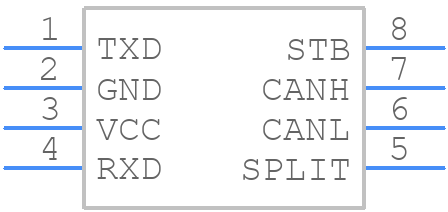

TJA1042CT/0Z - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1042CT/0Z - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1_2026-1.19
click to zoom
3D Models
TJA1042CT/0Z - NXP - 3D model - Small Outline Packages - SOT96-1_2026-1.19
click to zoom

TJA1042CT/0Z Details

  • Manufacturer Part Number:

    TJA1042CT/0Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TJA1042CT/0Z Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TJA1042CT/0Z is a generic CAN transceiver that can be configured for various CAN bus applications. NXP provides a configuration guide in the application note AN11536, which covers pin configuration, resistor selection, and termination requirements for different CAN bus topologies.
  • The maximum cable length supported by the TJA1042CT/0Z depends on the CAN bus speed and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for a 1 Mbps CAN bus and 10 meters for a 500 kbps CAN bus. However, the actual cable length may vary depending on the specific application and environment.
  • The TJA1042CT/0Z is designed to meet the electromagnetic compatibility (EMC) requirements of the automotive industry. It has built-in EMI filters and is designed to withstand EMS tests according to the IEC 62132 standard. However, additional EMI shielding and filtering may be required depending on the specific application and environment.
  • The TJA1042CT/0Z has an operating temperature range of -40°C to 125°C, making it suitable for use in harsh automotive environments.
