TJA1042TK/3,118 - NXP

Description: NXP - TJA1042TK/3,118 - CAN TRANSCEIVER, 1TX/RX, HVSON-8

Download TJA1042TK/3,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

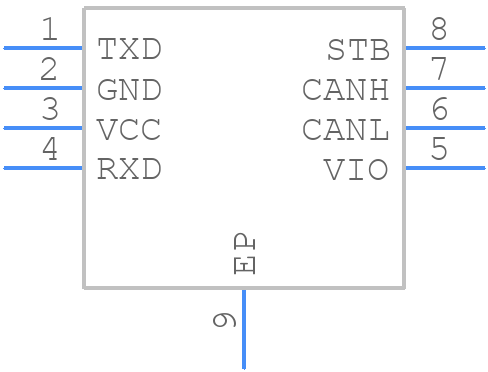

TJA1042TK/3,118 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1042TK/3,118 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON8(SOT-782-1)
click to zoom
3D Models
TJA1042TK/3,118 - NXP - 3D model - Small Outline No-lead - HVSON8(SOT-782-1)
click to zoom

TJA1042TK/3,118 Details

  • Manufacturer Part Number:

    TJA1042TK/3,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SON

  • Package Description:

    HVSON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT782-1

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TJA1042TK/3,118 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TJA1042TK/3,118 involves keeping the CAN bus traces as short as possible, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a common mode choke to filter out electromagnetic interference (EMI).
  • To ensure EMC with the TJA1042TK/3,118, follow proper PCB design guidelines, use a metal shielded connector, and consider adding EMI filters or ferrite beads to the CAN bus lines. Additionally, ensure the device is properly grounded and use a common mode choke to reduce emissions.
  • The maximum cable length supported by the TJA1042TK/3,118 depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length for a CAN bus system is typically around 40 meters (131 feet) at a data rate of 1 Mbps.
  • To troubleshoot issues with the TJA1042TK/3,118, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the CAN bus termination resistors are properly connected and the bus is properly terminated. Use a logic analyzer or oscilloscope to monitor the CAN bus signals and identify any errors or anomalies.
  • Yes, the TJA1042TK/3,118 can be used in a fault-tolerant CAN bus system. The device has built-in fault-tolerant features, such as bus fault detection and reporting, which can help ensure the system remains operational even in the event of a fault.
