TJA1044GT/3 - NXP

Description: CAN Interface IC TJA1044GT/SO8//3/REEL 13 Q1/T1 *STANDARD MARK SBB

Download TJA1044GT/3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

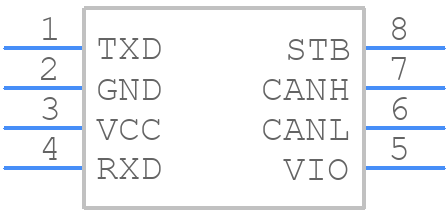

TJA1044GT/3 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1044GT/3 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1
click to zoom
3D Models
TJA1044GT/3 - NXP - 3D model - Small Outline Packages - SOT96-1
click to zoom

TJA1044GT/3 Details

  • Manufacturer Part Number:

    TJA1044GT/3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-06

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Additional Feature:

    ESD on pins CANH and CANL ESD is 8kV

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TJA1044GT/3 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by TJA1044GT/3 is 40 meters, but it depends on the cable quality, noise environment, and system design. It's recommended to perform tests to determine the maximum cable length for a specific application.
  • Yes, TJA1044GT/3 is designed for high-speed CAN applications up to 1 Mbps. It meets the ISO 11898-2 standard for high-speed CAN transceivers.
  • To ensure EMC with TJA1044GT/3, follow proper PCB design and layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the system meets the relevant EMC standards and regulations.
  • The power consumption of TJA1044GT/3 depends on the operating mode. In normal mode, the typical current consumption is 10 mA, and in standby mode, it's 10 μA. Refer to the datasheet for more detailed information on power consumption.
  • Yes, TJA1044GT/3 is designed to support fault-tolerant CAN systems. It has built-in fault detection and reporting capabilities, and it can operate in a fault-tolerant mode to ensure continued communication in the event of a fault.
