TJA1044GTK/3 - NXP

Description: CAN Interface IC TJA1044GTK/HVSON8//3/REEL 13 Q1/T1 *STANDARD MARK

Download TJA1044GTK/3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

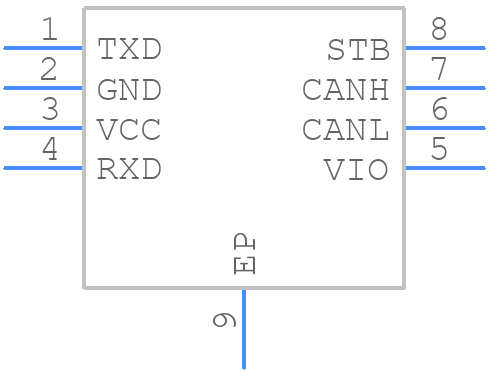

TJA1044GTK/3 - NXP - PCB symbol
click to zoom
PCB Footprints
TJA1044GTK/3 - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON8
click to zoom
3D Models
TJA1044GTK/3 - NXP - 3D model - Small Outline No-lead - HVSON8
click to zoom

TJA1044GTK/3 Details

  • Manufacturer Part Number:

    TJA1044GTK/3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-06

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6.96

  • Additional Feature:

    ESD on pins CANH and CANL ESD is 8kV

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    110 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm
